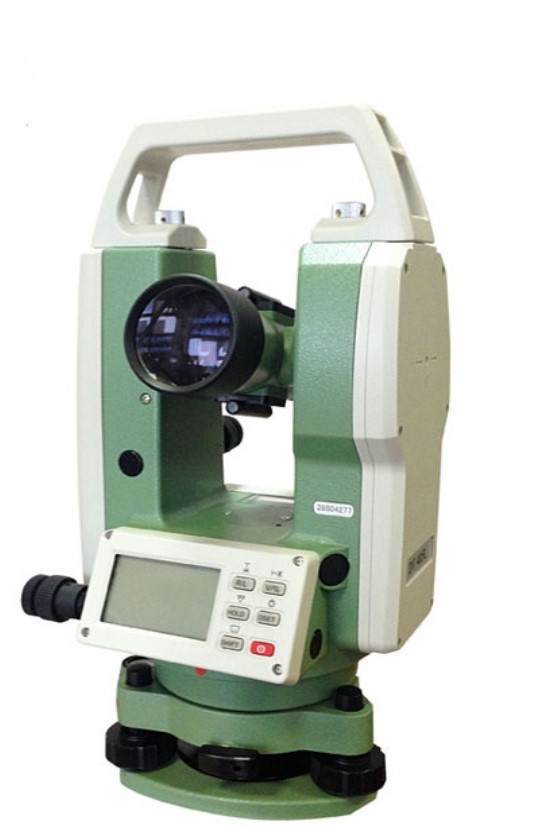

Key Features – LYNX DT-02 Electronic Theodolite

1. High Angular Accuracy – Offers 2″ precision for reliable and accurate angle measurements.

2. Absolute Encoding Technology – Ensures fast and stable readings with minimal errors.

3. Laser Plummet – Provides easy and precise instrument setup with 1mm accuracy at 1.5m.

4. High-Quality Telescope –

   • 30x magnification with a 1°30′ field of view.

   • 1.3 m minimum focusing distance for close-range work.

5. Dual-Side Backlit LCD Display – Comfortable and clear readings in all lighting conditions.

6. Tilt Sensor – Vertical angle compensation with ±3′ range for accurate measurement on uneven ground.

7. Lightweight & Durable – Weighs just 4.8 kg and is IP54-rated for water and dust resistance.

8. Long Operating Time – Rechargeable Ni-H battery with up to 10 hours of continuous operation.

9. Stadia Measurement – Integrated stadia ratio of 100 for quick distance estimation.

10. Wide Operating Temperature Range – Functions efficiently between -20°C and +50°C.

Applications / Use Cases

• Construction site alignment.

• Road and bridge surveying.

• Layout and angle measurements.

• Utility and pipeline projects.

• General engineering surveys.
