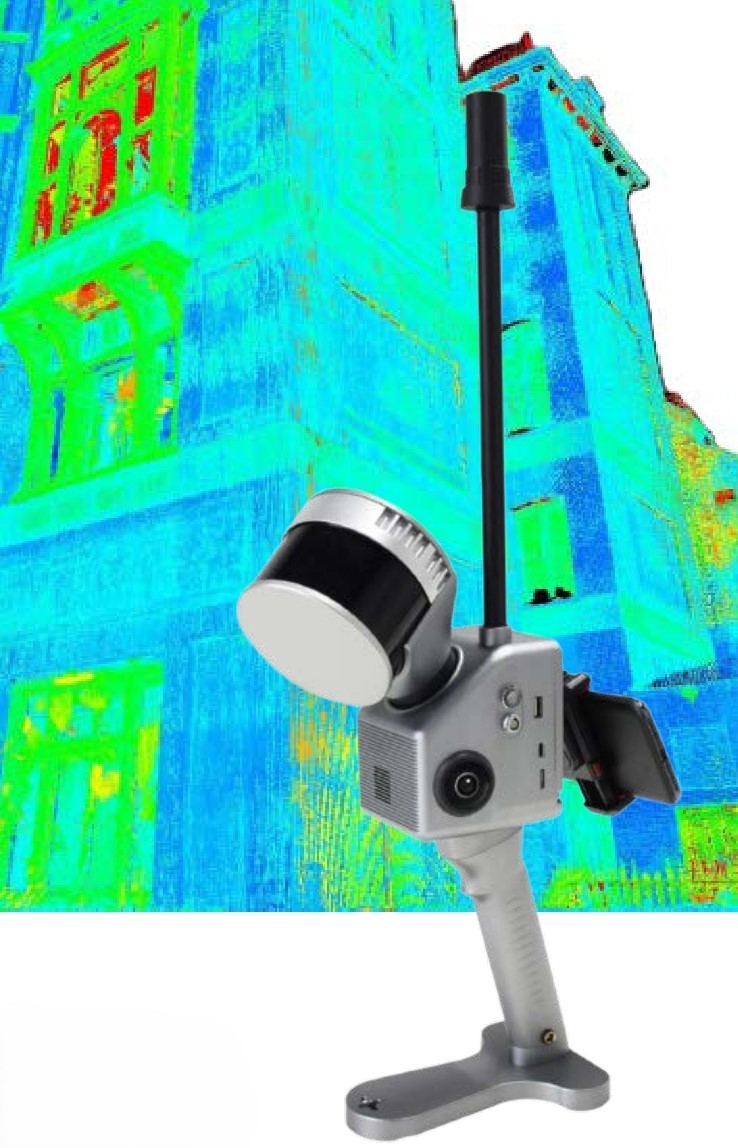

Key Features – Lynx-120S Handheld SLAM LiDAR Scanner

1. High-Precision LiDAR Technology – Delivers ±1.5 cm range accuracy with a maximum range of 120 m.

2. 16-Channel LiDAR with Wide Field of View – 360° horizontal and 270° vertical coverage for comprehensive data capture.

3. Advanced SLAM Algorithms – Seamless indoor and outdoor mapping without the need for GPS.

4. High-Speed Data Capture – Processes up to 640,000 points per second.

5. Integrated Dual HD Cameras – Two 20 MP cameras for real-time colorized 3D point cloud generation.

6. Real-Time Processing & Preview – Live color 3D point cloud display for instant results.

7. Superior Positioning Accuracy – Horizontal accuracy up to 2 cm and vertical accuracy up to 3 cm with GNSS + INS.

8. Multi-Platform & Multi-Mode Support – Can be handheld or mounted on a vehicle.

9. Compact & Lightweight Design – Portable build weighing only 2.15 kg.

10. Long Battery Life – Built-in 11,600 mAh battery for extended field operations.

11. Ample Storage – Built-in 128 GB microSD, expandable up to 256 GB.

12. Weather-Resistant Build – Operates effectively in temperatures from -20°C to +55°C.

13. Laser Safety – Class 1 eye-safe laser (905 nm wavelength).
