LiMobile M2 Ultra
Description and About

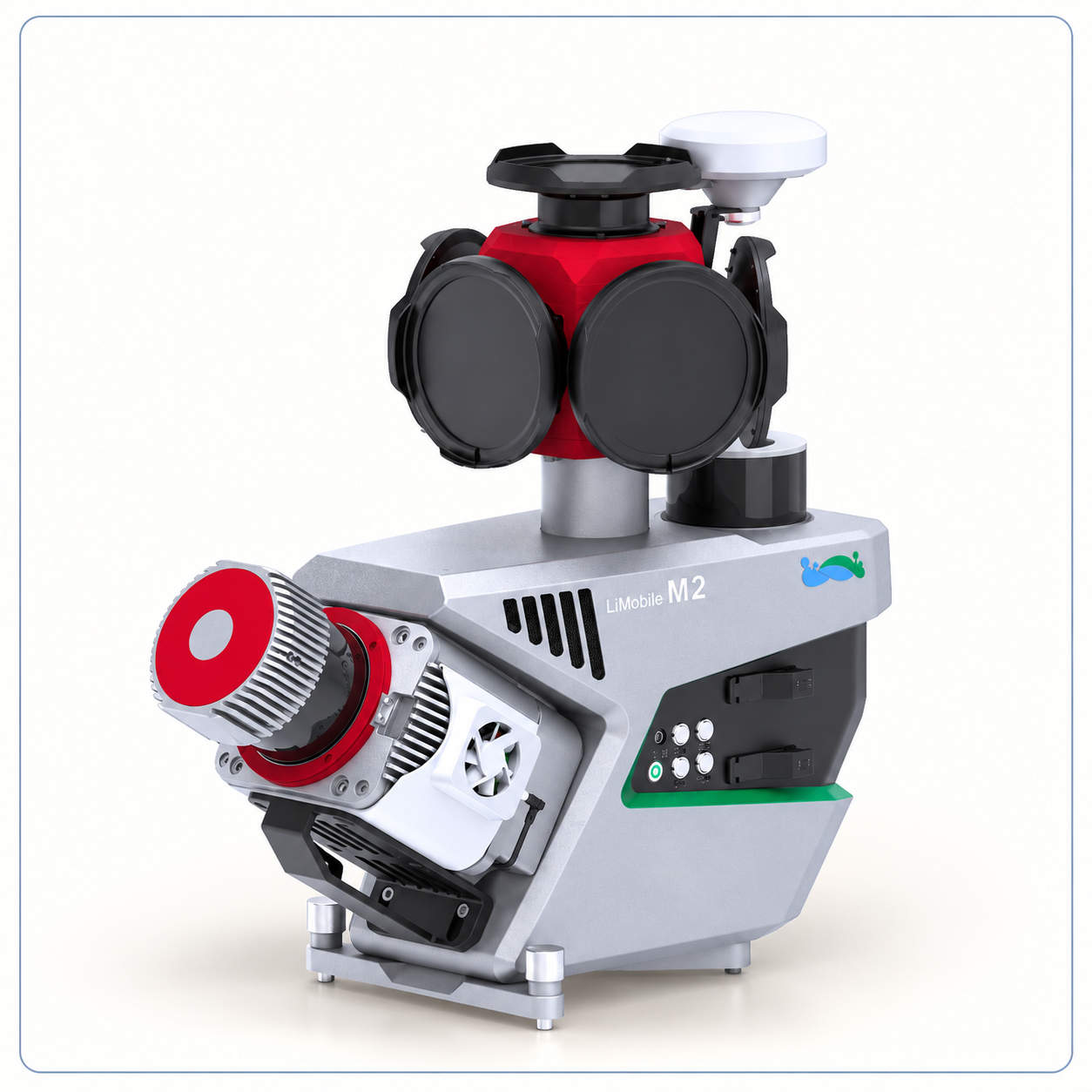

The LiMobile M2 Ultra is a high-precision mobile laser scanning system that integrates long-range LiDAR, GNSS/INS navigation, multi-channel SLAM LiDAR, and high-resolution panoramic imaging for advanced 3D mapping. With a detection range of up to 475 m, LiDAR precision of 3 mm, and absolute accuracy of 3 cm or better under specified conditions, it supports road asset inventory, pavement analysis, intelligent transportation, high-definition mapping, and digital twin applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | High-Precision Mobile Laser Scanning System |
| Maximum Detection Range | Up to 475 m at 300 kHz and 80% target reflectivity |
| Detection Range at 10% Reflectivity | Up to 170 m at 300 kHz |
| LiDAR Precision | 3 mm |
| LiDAR Accuracy | 5 mm |
| Laser Pulse Repetition Rate | 300 to 1,800 kHz |
| Scan Rate | 10 to 250 scans/second |
| Field of View | 360° |
| Panoramic Camera | Ladybug5+, 30 MP |
| Optional Panoramic Camera | Ladybug6, 72 MP |
| Optional Planar Camera | 24 MP pavement/front camera |
| GNSS Support | GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS |
| IMU Data Frequency | 100 Hz |
| Position Accuracy (PPK) | Horizontal: 1 cm; Vertical: 2 cm |
| Roll/Pitch Accuracy | 0.005° |
| Heading Accuracy | 0.01° |
| Absolute Accuracy | ≤3 cm under specified calibration conditions |
| Storage | 2 × 1 TB |
| Battery Capacity | 6 × 6,000 mAh |
| Operating Time | 3 hours or more |
| System Weight | 18 kg |
| System Dimensions | 554 × 230 × 547 mm |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 40°C |
| Power Consumption | 120 W typical; 150 W maximum |
| Power Supply | 24 V DC |
| Connectivity | Wi-Fi, Ethernet |
| Data Output Formats | LAS, LAZ, LiData |
| Data Collection Software | GreenValley App |
| Processing Software | LiDAR360MLS-Geo; LiDAR360MLS optional |
