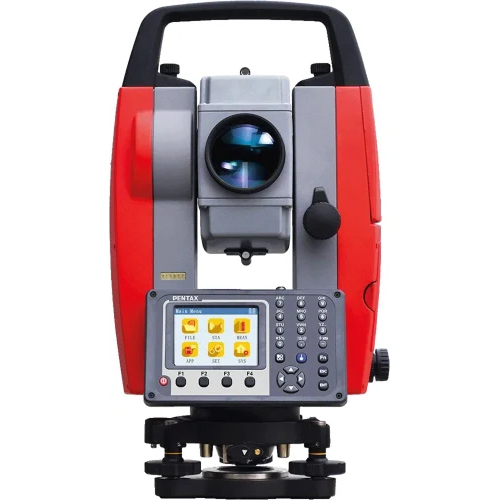

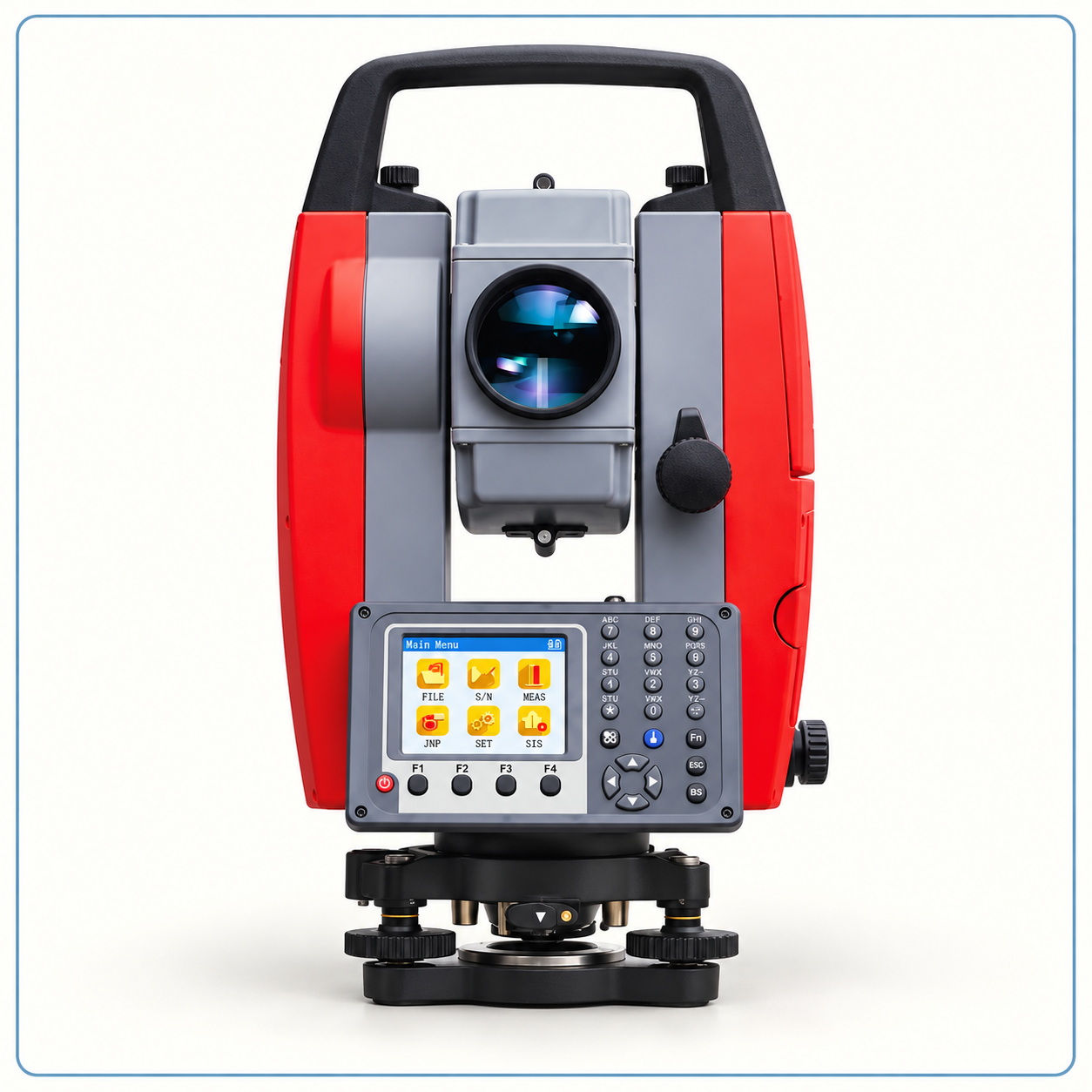

Pentax Total Station V-102N
Description and About
The Pentax Total Station V-102N is a precision surveying instrument designed for construction, land surveying, and infrastructure projects. Equipped with TURBO X EDM technology, 2-second angular accuracy, reflectorless measurement up to 1,000 m, and onboard surveying programs, it supports efficient fieldwork and reliable measurement performance.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | V-102N |
| Angle Measurement Accuracy | 2″ |
| Minimum Angle Reading | 1″ |
| Telescope Magnification | 30× |
| Effective Aperture | 48 mm |
| Field of View | 1° 30′ |
| Minimum Focusing Distance | 1.7 m |
| Reflectorless Measurement Range | Up to 1,000 m |
| Prism Measurement Range | Up to 3,500 m with a single prism |
| Prism Measurement Accuracy | ±(2 mm + 2 ppm × D) |
| Reflectorless Accuracy (up to 200 m) | ±(3 mm + 2 ppm × D) |
| Reflectorless Accuracy (beyond 200 m) | ±(5 mm + 3 ppm × D) |
| Angle Measurement Method | Absolute rotary encoder |
| Compensator | Dual-axis, ±4′ range |
| Display | Dual-sided, backlit colour LCD, 320 × 240 pixels |
| Internal Data Capacity | Approximately 40,000 points |
| Connectivity | USB and Bluetooth |
| Laser Plummet | Class 2 |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +50°C |
| Battery | Li-ion, 7.4 V, 3,350 mAh, two hot-swappable batteries |
| Operating Time | Up to 30 hours of continuous distance measurement or 50 hours of angle measurement with two batteries |
| Dimensions | 215 × 176 × 315 mm |
| Weight | Approximately 5.93 kg, including battery |
