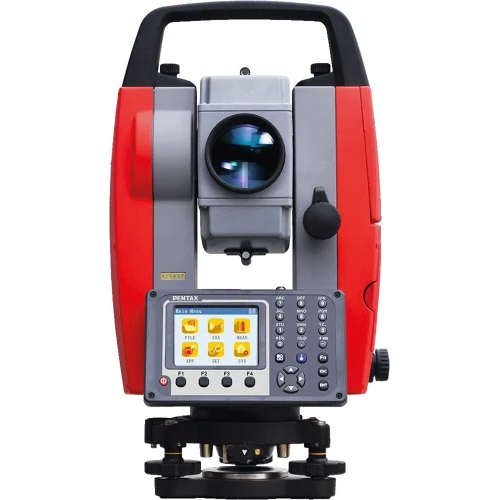

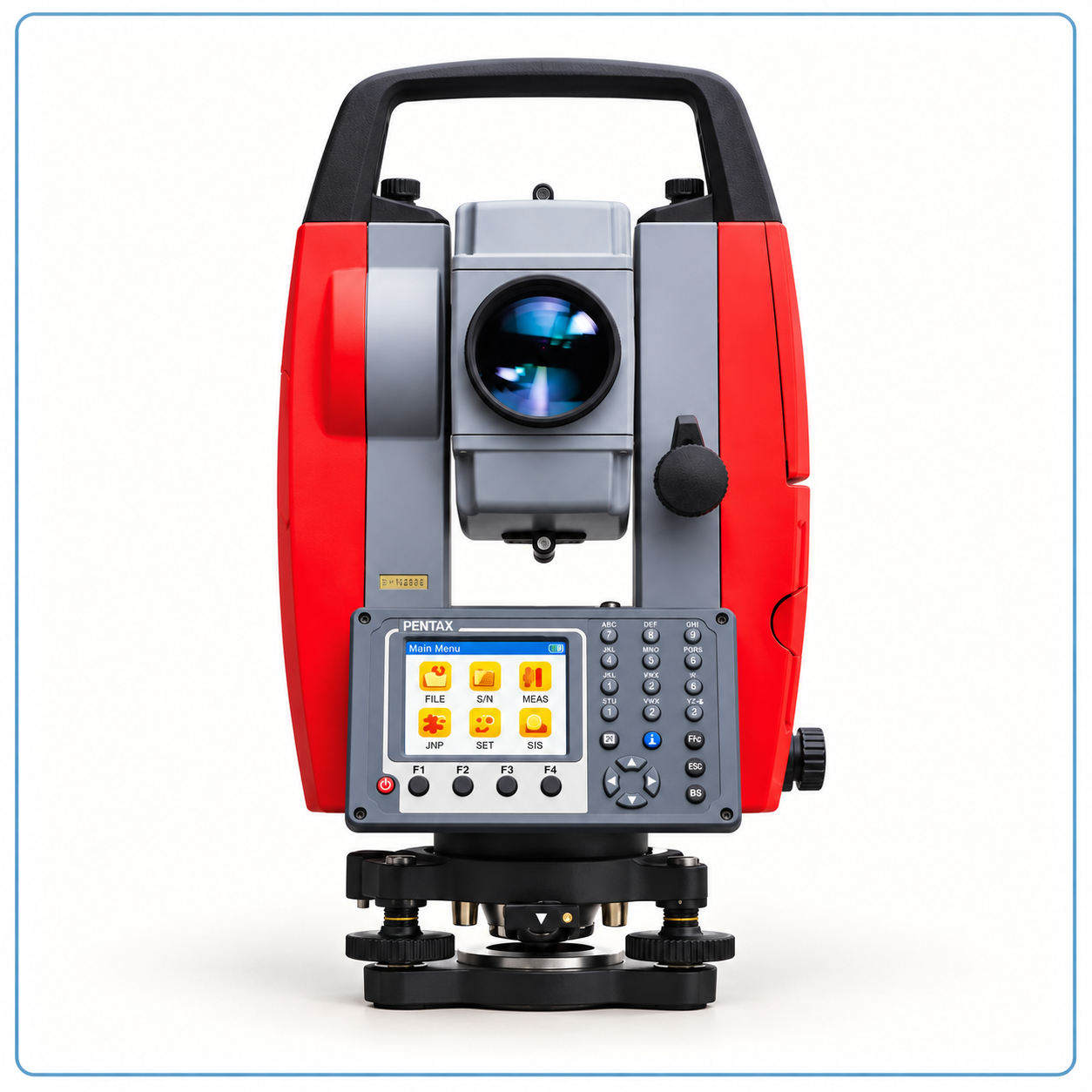

Pentax Total Station V-102NL
Categories Surveying Instruments and Drones, LYNX TOTAL STATION
Description and About
The Pentax Total Station V-102NL is a precision surveying instrument designed for construction, land surveying, and infrastructure projects. Featuring 2″ angular accuracy, reflectorless measurement up to 600 m, and TURBO X EDM technology, it supports efficient fieldwork and reliable measurement performance.
Technical specifications
| Specification | Details |
|---|---|
| Model | V-102NL |
| Angular accuracy | 2″ |
| Telescope magnification | 30× |
| Reflectorless measurement range | Up to 600 m |
| Prism measurement range | Up to 3,500 m |
| Prism measurement accuracy | ±(2 mm + 2 ppm × D) |
| Reflectorless accuracy | ±(3 mm + 2 ppm × D) up to 200 m; ±(5 mm + 3 ppm × D) beyond 200 m |
| Compensator | Dual-axis, ±4′ |
| Display | Dual-sided backlit colour LCD, 320 × 240 pixels |
| Data storage | Internal memory, approximately 40,000 points |
| Connectivity | USB and Bluetooth |
| Protection rating | IP54 |
| Operating temperature | -20°C to +50°C |
| Battery | 7.4 V, 3350 mAh Li-ion; hot-swappable battery system |
| Operating time | Up to 30 hours of continuous distance measurement with two batteries |
| Dimensions | 215 × 176 × 315 mm |
| Weight | Approximately 5.93 kg including battery |
