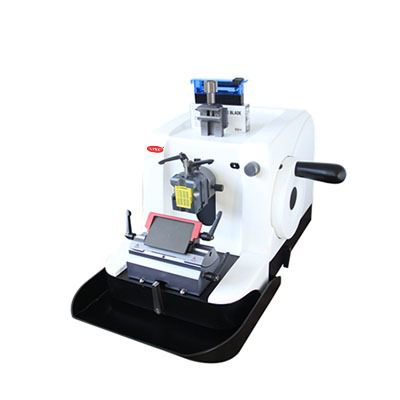

Rotary Microtome YD-315

The Rotary Microtome YD-315 is designed for routine histology, biological, and industrial applications. Built with imported key components from Japan, it ensures high precision, stability, and reproducible section quality for wax and plastic embedded specimens.

Key Features

• High precision specimen feed system
• Universal cassette clamp and standard specimen clamp
• Hand wheel locking system with dual fail safe control
• Special blade holder for safe disposable blade usage
• Smooth running hand wheel
• Integrated section waste tray
• Protection guard for operator safety

Technical Specifications

• Section Thickness Range: 0 to 60 μm
• Horizontal Specimen Stroke: 28 mm
• Vertical Specimen Stroke: 60 mm
• Maximum Section Size: 50 × 45 mm
• Sample Orientation: 8° along X Y axis, rotatable 360°
• Precision Error: ±5%
• Net Weight: 34 kg

Standard Accessories

• 2 Types of Clamps
• Blade Carrier
• Waste Tray
• Tissue Molds
• Cassettes

Optional Accessories

• Blade Holder
• Steel Knife
• Disposable Blade
