Smaller, Lighter, and More Versatile GNSS Solution

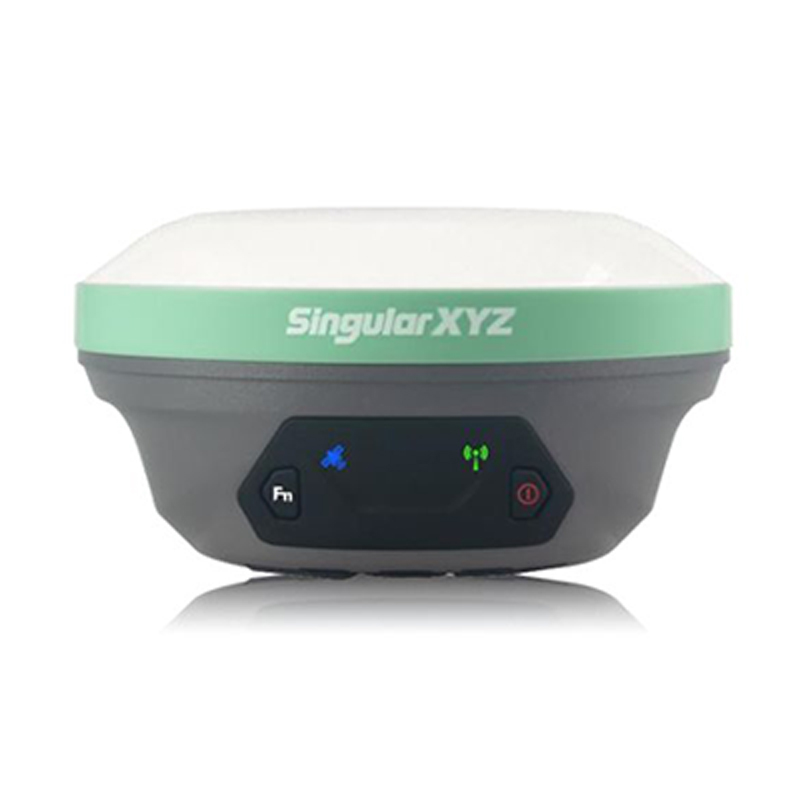

The X1 Pro GNSS Receiver is a compact and lightweight surveying device designed for high efficiency and ease of use in the field. With its palm-sized design and advanced features, it delivers reliable performance across a wide range of surveying applications.

Key Features

• Compact and lightweight design
  Palm-sized (Φ133.5 mm × 67 mm) and only 870 g, making it easy to carry and operate in the field
• 60° IMU tilt measurement with 5-second initialization
  Enables fast setup and accurate tilt measurements up to 60°, maintaining ±2.5 cm accuracy throughout operations
• Long battery life
  Built-in 6700 mAh battery supports over 20 hours of continuous operation with fast Type-C charging
• Multiple transmission options
  Supports NFC, Bluetooth, WiFi, 4G, UHF, RS232, and Type-C USB for flexible connectivity
• Extended working range
  Up to 15 km in internal UHF mode, 20 km in external mode, and up to 50 km via GSM or CORS mode
• IP68 rugged design
  Fully protected against dust, water, and harsh field conditions
• Web UI access
  Allows easy data download, firmware upgrades, and device configuration via WiFi

Design & Build

The X1 Pro GNSS Receiver is engineered for field efficiency with a durable housing, compact form factor, and optimized internal battery design. Its lightweight build reduces user fatigue while maintaining strong performance in demanding environments.

Connectivity & Interface

• NFC and Bluetooth for quick connection
• WiFi and 4G for communication
• Type-C USB for charging and upgrades
• RS232 serial port for external radio connection
• TNC connector for UHF antenna

Software Compatibility

Compatible with Android-based field surveying software for efficient data collection and management.

Applications

• Land surveying
• Mapping and geospatial data collection

Technical Specifications

• Battery: 6700 mAh, over 20 hours working time
• Size: Φ133.5 mm × 67 mm
• Weight: 870 g
• Protection: IP68 (waterproof and dustproof)
• Web UI: Accessible via WiFi
